- RTX Pro 5000 Blackwell supports up to 72GB GDDR7 memory with ECC
- Blackwell architecture provides 14,080 CUDA cores and enhanced Tensor and Ray Tracing cores
- Multi-instance GPU support allows splitting a single card into multiple virtual GPUs

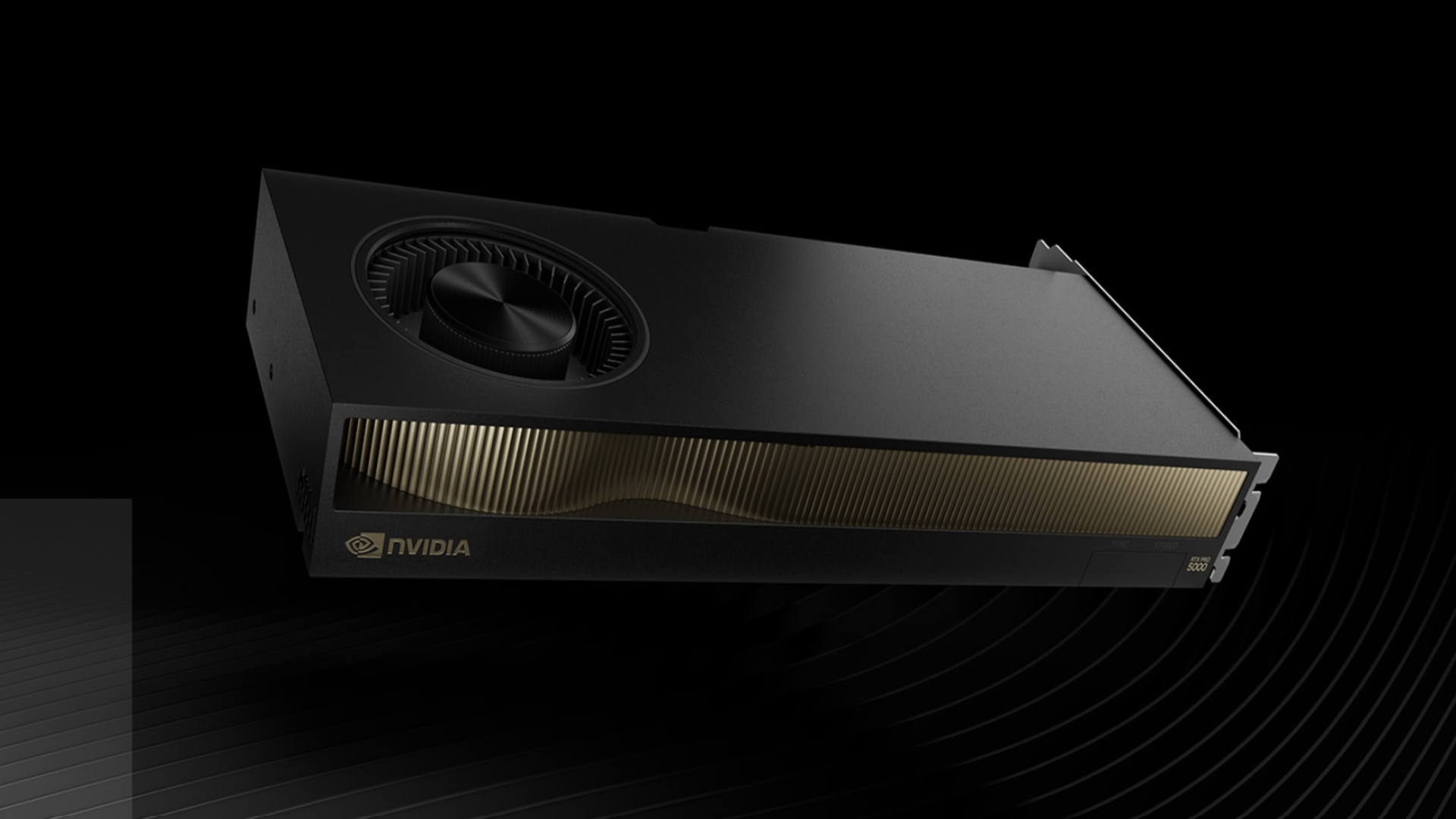

The Nvidia RTX Pro 5000 Blackwell increases memory capacity, offering configurations up to 72GB of GDDR7 memory with ECC support.
Its 512-bit memory interface provides a theoretical bandwidth of 1.344 TB/s, supporting high-resolution simulations, large models and data sets commonly found in workstation environments.
The GPU uses the Blackwell architecture and includes 14,080 CUDA cores, fifth-generation Tensor cores optimized for FP4 precision, and fourth-generation Ray Tracing cores that handle complex geometric calculations.
Basic Architecture and Compute Specifications
The card includes an AI management processor and Multi-Instance GPU (MIG) support, allowing it to partition into multiple virtual GPUs and support parallel engineering and simulation workloads.
This professional graphics card supports up to four DisplayPort 2.1b outputs with maximum digital resolutions exceeding 7680 x 4320 at 60 Hz.
The system interface is PCIe 5.0×16, which provides high-speed communication between the GPU and CPU and allows large data sets to be moved without creating bottlenecks in demanding workstation applications.
Nvidia has also upgraded its video engines, adding ninth-generation NVENC and sixth-generation NVDEC with 4:2:2 support.
These engines accelerate the encoding and decoding of high-resolution video streams used in specialized engineering and visualization tasks.
The RTX Pro 5000 Blackwell features enhanced streaming multiprocessors paired with AI-enabled Tensor cores, targeting workloads that rely heavily on GPU compute.
Its single-precision floating point performance reaches 65TFLOPS, while RT Core performance peaks at 196TFLOPS.
Despite these specifications, actual performance depends on application optimization, CPU coupling, and how efficiently the software uses available memory.
Users running CAD, 3D modeling, or simulation software will likely benefit the most when working with very large data sets or multi-GPU partitions, although many engineering workloads remain limited by CPU performance or software design.
The card draws 300W through a single 16-pin PCIe power connector and uses a full-height dual-slot form factor.
An active cooling solution maintains thermal stability during sustained workloads, suitable for professional environments where systems often operate for extended periods of time.
Its full-length 10.5-inch design requires careful planning when selecting a compatible workstation chassis.
The 48GB RTX Pro 5000 Blackwell costs $4,199.99, and upgrading to a 72GB configuration should increase the price further.
Using a simple “GB for GB” calculation, the higher-capacity version would cost around $6,300, putting it above many competing professional cards from Nvidia and other vendors.
Given that Nvidia’s 96GB RTX Pro 6000 Blackwell Workstation Edition now costs just over $7,500 after recent price adjustments, the expected price of the RTX Pro 5000 Blackwell raises questions about overall value.
